ClearFog CX LX2
ClearFog CX LX2K, ClearFog CX Mini ITX Server, LX2160A COM Express type 7, Networking SOMs/COMs, NXP Family, NXP Layerscape LX2160AClearFog CX LX2
16-core 2GHz LX2160A
64GB eMMC | 4 x 10GbE SFP+
Up to 40GbE | 0° to 70° C
Mini ITXSKU: SRLX216S00D00GE064C08CH
*Please note: Heatsink included, RAM is not included (see Accessories tab below).SKU: SRLX216S00D00GE064C08CH
ClearFog CX LX2K, ClearFog CX Mini ITX Server, LX2160A COM Express type 7, Networking SOMs/COMs, NXP Family, NXP Layerscape LX2160A
ClearFog CX LX2
16-core 2GHz LX2160A
64GB eMMC | 4 x 10GbE SFP+
Up to 40GbE | 0° to 70° C
Mini ITX
SKU: SRLX216S00D00GE064C08CH
*Please note: Heatsink included, RAM is not included (see Accessories tab below).
$1,000.00
$1,000.00 for 1 item(s)

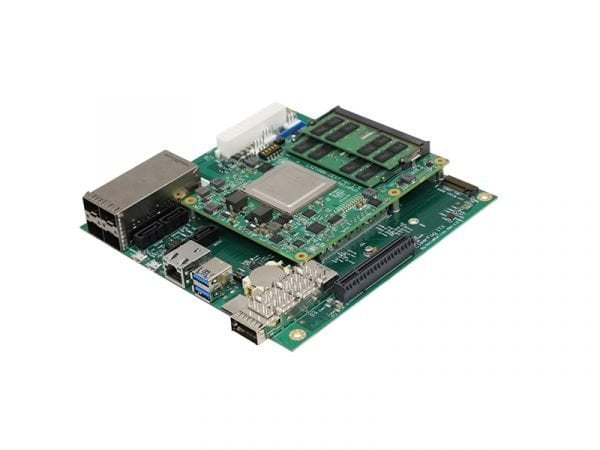

ClearFog CX LX2 – Network Computing Mini-ITX Carrier – LX2160A
- NXP LX2160A Arm® Cortex® A72
- Dual DDR4 SO-DIMM 2900MT/s (none included; up to 2 x 32GB)
- 64GB eMMC
- 4 x 10GbE SFP+ (2×2)
- QSFP28 Cage (up to 40GbE)*
- Commercial Temp. (0° to 70° C)
- COM Express type 7 module + Mini ITX carrier board
- Size: 170mm x 170mm
For more information visit ClearFog CX LX2K page.
*8 weeks shipping.
*Power supply not included.
For product documentation and support please visit our developer resources.
Weight | 1.5 kg |
---|---|
CPU Name | NXP LX2160A |
CPU Type | 16 x Arm Cortex A72 |
CPU Clock Speed | 2GHz |
Memory | None |
Storage | 64GB eMMC, SPI 1Gbit |
Wireless Connectivity | None |
Connectivity | Ethernet, PCIe, QSFP28, SATA, SFP, UART, USB 2.0, USB 3.0 |
Temperature | 0° to 70° C |
OS Support | Linux |
Visit the ClearFog CX LX2K page for more info.
